M3-CRETE is an experimental open-hardware concrete/paste-printing motion reference for qualified technical teams working in controlled R&D, laboratory, or supervised institutional settings. It is not a consumer product, hobby kit, finished machine, certified construction printer, validated field-use system, or structural concrete production system.

Reference model // October 22, 2026

Explore the CAD reference

The current wheel-placement reference retains 158 modeled components and 32 V-wheels, including eight wheels across the two X-carriage plates.

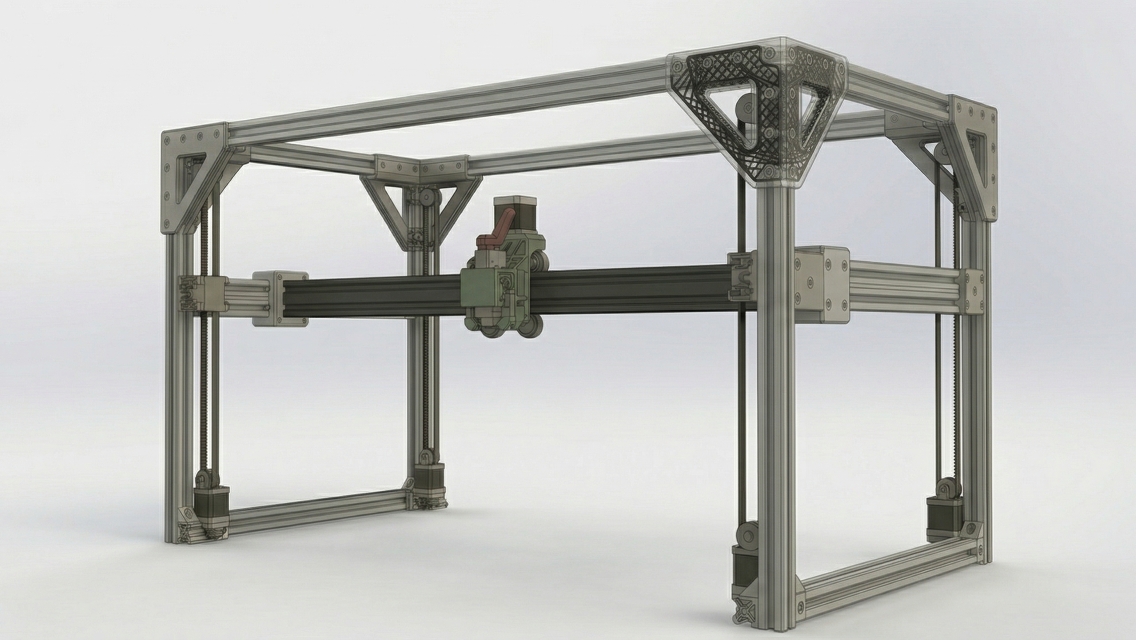

Isometric CAD view of the M3-CRETE reference frame, gantry and four lead-screw stacks
CAD reference render. The lead screws use smooth-rod representations; threads are not modeled.

A reference for technical review

The assembly retains the authored component geometry. Approval of the wheel placement does not establish fastening fit, preload, motor-plate clearance or physical validation.

The full assembly and its STEP still contain the older boxed motor mount. The open-access R2 mount below is a separate part with matching STEP and STL files; it is not incorporated in the assembly shown here. Its fit and assembly placement have not been validated.

Explore the open-access R2 mount · Compare mount revisions

Standalone part // R2 // October 22, 2026

Open-access motor mount

Matching STEP and STL files for the revised Z-axis NEMA23 lead-screw motor mount.

Isometric CAD view of the open-access R2 motor mount with rounded access windows and the original mounting tab
Render of the standalone R2 STEP part. The full assembly above still uses the older mount.

One part, two file formats

The revised part has four access windows while retaining the original STEP's mounting holes, mounting tab and overall dimensions. The matching STL is exported from this approved STEP.

Numerical geometry checks are complete. Physical fit, strength and print performance still require validation. This part has not been placed or validated in the full assembly.

Explore the customizable BOM · Read the mount revision notes

Commercial Surface, Open Technical Core

The technical design remains open on GitHub. This site handles customer qualification, support scope, safety boundaries, professional-use acknowledgement, and commercial communication.

Open design files

CAD, BOM source data, firmware references, license files, and build documentation remain available through the M3-CRETE GitHub repository.

Qualified early access

Sunnyday is accepting inquiry-only conversations with qualified teams interested in controlled evaluation and useful build feedback. Acceptance, configuration, availability, and terms require separate written agreement.

Clear support boundary

If offered, paid support, supplied components, software access, or integration work must be separately scoped, quoted, and accepted in writing. Public pages create no entitlement or commitment.

What M3-CRETE Is For

Potential evaluation contexts include controlled research, product development, non-structural specimens, forms, molds, process-development articles, and supervised institutional work. This list does not establish suitability for any use; each material, machine, process, output, workspace, and operator plan requires independent review and physical validation.

Research and education

Use a documented, modifiable platform for concrete additive manufacturing coursework, laboratory investigation, and grant-supported research.

Materials and process testing

Design controlled experiments around candidate mixes, toolpaths, printability observations, and workflow assumptions. Results depend on the actual configuration, protocol, materials, environment, and physical evidence.

Product development

Explore non-structural prototypes, molds, forms, or process fixtures only within a qualified test plan. Publication does not establish accuracy, durability, field suitability, or product readiness.

Safety Boundary

M3-CRETE is an experimental development reference for professional-use evaluation. Any physical implementation requires competent mechanical, electrical, controls, safety, and concrete/paste-printing judgment.

Sunnyday does not provide public AC mains wiring instructions, control-panel build instructions, facility-connection instructions, safety-rated emergency-stop circuit designs, or code-compliance instructions. Any electrical power system, control panel, grounding/bonding system, disconnect, overcurrent protection, emergency-stop power circuit, machine guarding, facility connection, inspection, certification, field evaluation, or AHJ review must be designed, built, inspected, and accepted by qualified professionals for the specific installation and intended environment.

This is a portfolio and proposed workflow map, not an automated closed loop, validated integration, supplied dataset, or claim that one surface certifies another.
